Sanitary CI Series with Quick-Clean RotorRail™

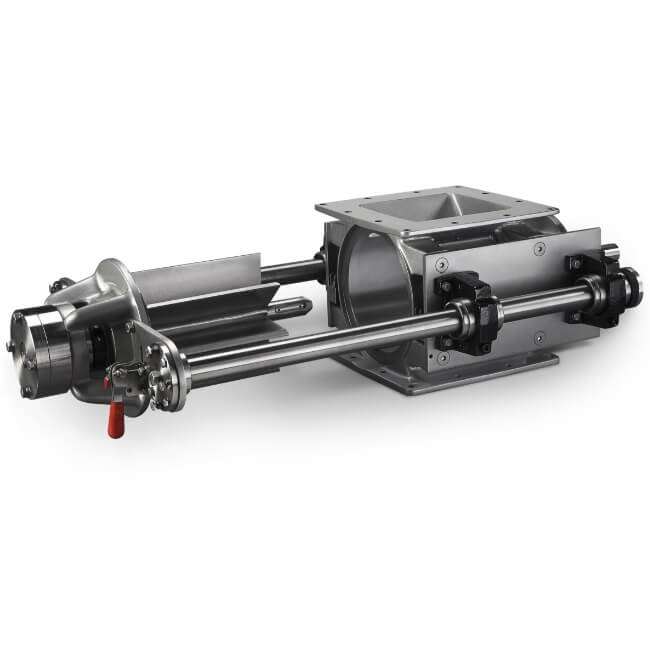

The CI Series airlock features RotorRail™ technology, which facilitates disassembly and ensures accurate reassembly of the rotor and endplate. With no internal crevices and joints, the CI airlock’s quick-clean design saves time and effort when it comes to meeting industry standards for inspection and sanitization.

Contact us to discuss your process requirements and request a quote.

Get started

Applications

The Sanitary CI Series rotary valve is designed for metering, feeding and airlock applications.

Rotary valve capacity

Valve size	CFH
6″	6	30	48	60	72	84	96	108	120	132
8″	12	60	96	120	144	168	192	216	240	264
10″	24	120	192	240	288	336	384	432	480	528
12″	45	225	360	450	540	630	720	810	900	990
14″	66	330	528	660	792	924	1,056	1,188	1,320	1,452
16″	84	420	672	840	1,008	1,176	1,344	1,512	1,680	1,848
18″	162	810	1,296	1,620	1,944	2,268	2,592	2,916	3,240	3,564
	1	5	8	10	12	14	16	18	20	22
	Rotor speed (RPM)

Standard features

Cast with superior solidification and metallurgy, the 304 or 316 stainless steel housing eliminates pits and dimples where contaminants could accumulate.
All rotor surfaces and product-contact surfaces of the housing are a No. 4 finish.
Cleaning, validation and inspection are easy with tool-less, single-step access to the rotor and internal surfaces.
RotorRail™ technology maintains rotor–endplate alignment during disassembly and ensures precise realignment during reassembly.
The Run-Clean™ design includes angled surfaces, rounded edges and factory-applied internal coatings to reduce material buildup in the housing.
Valves are available in seven heights (10” to 44”) and seven square-flange sizes (6” to 18”).
CNC-machined components and housing provide precision tolerances, eliminate axial shaft movement and extend maintenance cycles.
The outboard-bearing design protects bearings in high-temperature and high-PSIG applications, as well as removes bearings from the direct path of damaging contaminants.
CI-Series airlocks easily manage pressure differentials up to 15 PSIG.
CI-Series airlocks deliver excellent performance in applications up to 500°F.
Every CI-Series airlock features an 8-vane rotor with beveled tips and sides.

Optional features

304, 304L, 316, 316L or 2205 cast stainless steel valve housing.
No. 4 finish on internal product-contact surfaces of housing and all rotor surfaces.
Interior coatings: hard chrome, tungsten, nickel and epoxy.
Rotor types: closed-end, metering, shallow-pocket, adjustable-tip and Teflon®-coated.
Adjustable rotor tips: bronze, hardened steel and stainless steel.
Shaft seal types: glandless Teflon® shaft seal and packing gland.
Valve housing vent ports.
Round flange design.
6-vane, 10-vane or 12-vane rotor.
Custom drive packages.
