VL Series

Applications

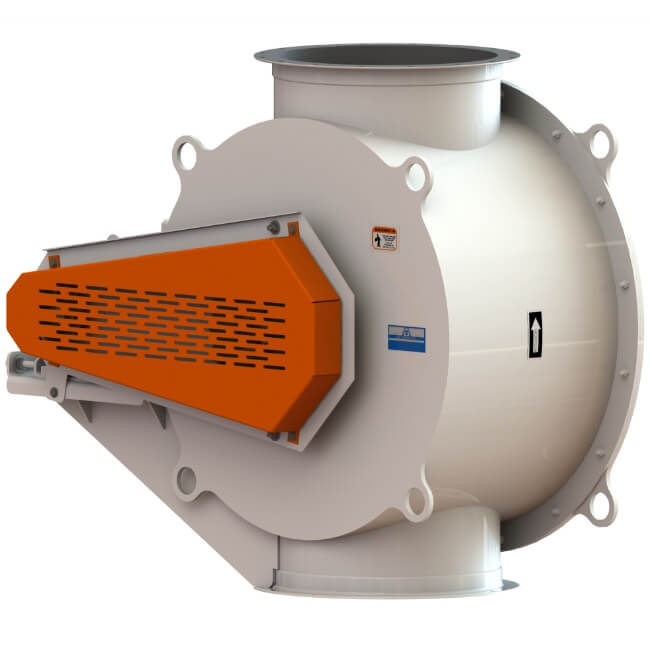

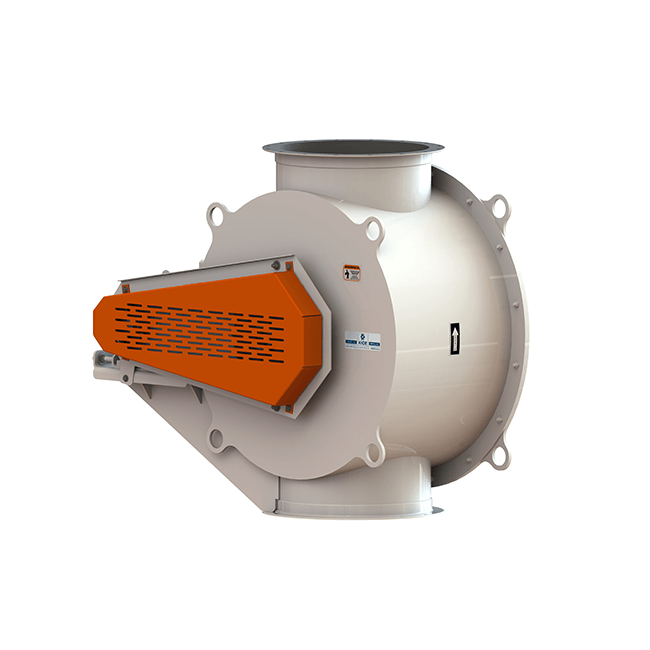

Kice VL airlock valves are best utilized in a low-pressure system. Featuring flexible tipped rotors, they are built to handle capacities of 1.5–17.3 cubic feet per revolution. VL airlocks feature large MOG wiper rotors meant to handle light fibrous materials.

Custom features

  • Inlet shunts are used to keep product out of the nip point, the area where the rotor enters the housing.
  • Materials of construction include fabricated steel or stainless steel.

Condensed airlock specifications

Size (in) CFR Weight (lb)
Inboard Model Outboard Model
6x6x6 0.07 100 120
8x6x6 0.16 145 175
10x6x6 0.27 160 200
10x8x8 0.33 180 230
12x8x8 0.55 280 340
14x10x10 0.67 340 440
16x12x12 1.1 435 550
18x12x12 1.45 470 580
18x14x14 1.67 490 670
20x12x12 1.9 550 850
20x15x15 2.3 600 900
24x15x15 3.2 900 1,050
30x24x24 7.32 1,500 2,920
